Linearantriebe mit Zahnriemen |
![](../../images/hpage/p_03.gif) |
|
|
Allgemeine Anleitung |
|
![](../../images/modul/lm/mec_belt_general.jpg) |

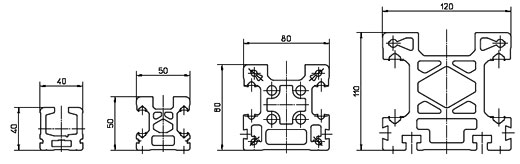

Profilquerschnitt |
40 x 40 | 50 x 50 | 80 x 80 | 110 x 50 | 120 x 110 |
140 x 85 | 145 x 64 | 165 x 165 | 180 x 120 | 240 x 85 |
|
|
|

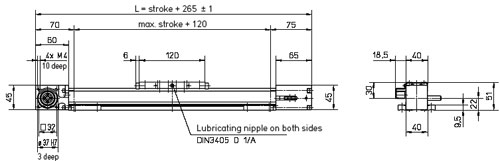

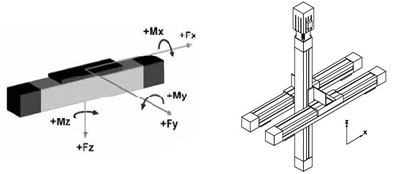

Technische Daten |
|
![](../../images/modul/lm/mec_belt_tecdata.jpg) |
![](../../images/modul/lm/mec_ball_tecdata2.jpg) |
|
Type |
WH 40 |
40 x 40 |
Vmax=3,0 m/s |
Fx =315 N |
Fz=600 N |
Mx=10 Nm |
Details |
WH 50 |
50 x 75 |
Vmax=6,5 m/s |
Fx=670 N |
Fz=730 N |
Mx= 16 Nm |
Details |
WH 80 |
80 x 110 |
Vmax=10 m/s |
Fx=2700 N |
Fz=2100 N |
Mx=75 Nm |
Details |
WH 120 |
120 x 165 |
Vmax=10 m/s |
Fx=5000 N |
Fz=9300 N |
Mx=500 Nm |
Details |
WHZ 50 |
50 x 75 |
Vmax=6,5 m/s |
Fx=670 N |
Fz=730 N |
Mx=16 Nm |
Details |
WHZ 80 |
80 x 110 |
Vmax=10 m/s |
Fx=1480 N |
Fz=2100 N |
Mx=75 Nm |
Details |
BET 140 |
140 x 85 |
Vmax=8 m/s |
Fx=4000 N |
Fz=6000 N |
Mx=500 Nm |
Details |
BET 165 |
165 x 165 |
Vmax=8 m/s |
Fx=10000 N |
Fz=15000 N |
Mx=700 Nm |
Details |
BET 180 |
180 x 120 |
Vmax=8 m/s |
Fx=6000 N |
Fz=12000 N |
Mx=1500 Nm |
Details |
DEL 110 |
110 x 50 |
Vmax=1 m/s |
Fx=2000 N |
Fz=3000 N |
Mx=500 Nm |
Details |
DEL 145 |
145 x 64 |
Vmax=2,5 m/s |
Fx=6000 N |
Fz=5000 N |
Mx=800 Nm |
Details |
DEL 240 |
240 x 85 |
Vmax=2 m/s |
Fx=12000 N |
Fz=12000 N |
Mx=4500 Nm |
Details |
|
|
|
|
|
|
