Spielfreie Servo-Sicherheitskupplungen |
![](../../images/hpage/p_03.gif) |
|
|

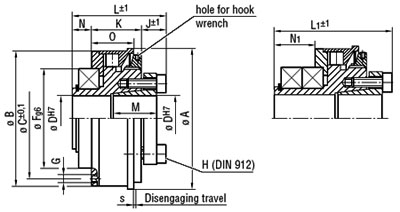

Technische Daten |
|
![Technische Daten](../../images/acces/coupl/trkl/sfty_04.jpg) |
Type |
ø D |
Einstellbarer Drehmoment [Nm] |
Drehzahl [rpm] |
L [mm] |
ø A [mm] |
Details |
DMK/L |
12 ... 90 |
5 ... 1.600 |
≤ 9240 |
50 ... 132 |
65 ... 195 |
Details |
DMK/L-L |
12 ... 90 |
5 ... 1.600 |
≤ 9240 |
58 ... 159 |
65 ... 195 |
Details |
DMK/C |
12 ... 90 |
5 ... 1.600 |
≤ 9240 |
51 ... 159 |
65 ... 195 |
Details |
DBK/DK |
6 ... 60 |
0,4 ... 500 |
≤ 11.690 |
66 ... 169 |
49 ... 128 |
Details |
DBK/B |
12 ... 90 |
5 ... 1.600 |
≤ 9.550 |
82 ... 250 |
60 ... 195 |
Details |
DMK/DS |
9 ... 60 |
2 ... 500 |
≤ 11.450 |
75 ... 185 |
50 ... 129 |
Details |
DXK/M |
5 ... 90 |
0,8 ... 1.600 |
≤ 15.000 |
32 ... 125 |
42 ... 195 |
Details |
DXK/ML |
5 ... 90 |
0,8 ... 1.600 |
≤ 15.000 |
32 ... 125 |
42 ... 195 |
Details |
DXK/SB |
8 ... 90 |
2 ... 1.600 |
≤ 11.450 |
70 ... 266 |
50 ... 194 |
Details |
DXK/SS |
8 ... 48 |
2 ... 500 |
≤ 11.450 |
74 ... 173 |
50 ... 130 |
Details |
DXK/LO |
5 ... 50 |
0,8 ... 500 |
≤ 15.070 |
19 ... 47 |
42 ... 130 |
Details |
|
|
|
|
|
|
